Processor System
| CPU |
Intel® Alder Lake-N SoC Processors
iBOX-260J (N97, QC, Max Speed Up to 3.6GHz, 12W) |
| Chipset |
SoC |
| BIOS |
AMI SPI 256 Mbit |
Memory
| Technology |
Single Channel DDR4 3200 MHz |
| Capacity |
32GB |
| Socket |
1 x 260-pin SO-DIMM |
Graphics
| Controller |
Intel® UHD Graphics |
| HDMI |
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz |
| DisplayPort |
DP 1.4a
Max resolution up to 4096 x 2160@60Hz |
| VGA |
Max resolution up to 1920x1200@60Hz |
| MultiDisplay |
Triple Display |
Expansion Slot
| M.2 |
1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1/USB 3.2/USB 2.0 and SIM for 4G/5G |
| SIM Socket |
1x SIM socket connected to M.2 key B |
Audio
| Interface |
Realtek ALC256 HD, High Definition Audio |
Ethernet
| Controller/ Speed |
LAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Intel® I210AT with 10/100/1000 Mbps |
| Connector |
2 x RJ-45 |

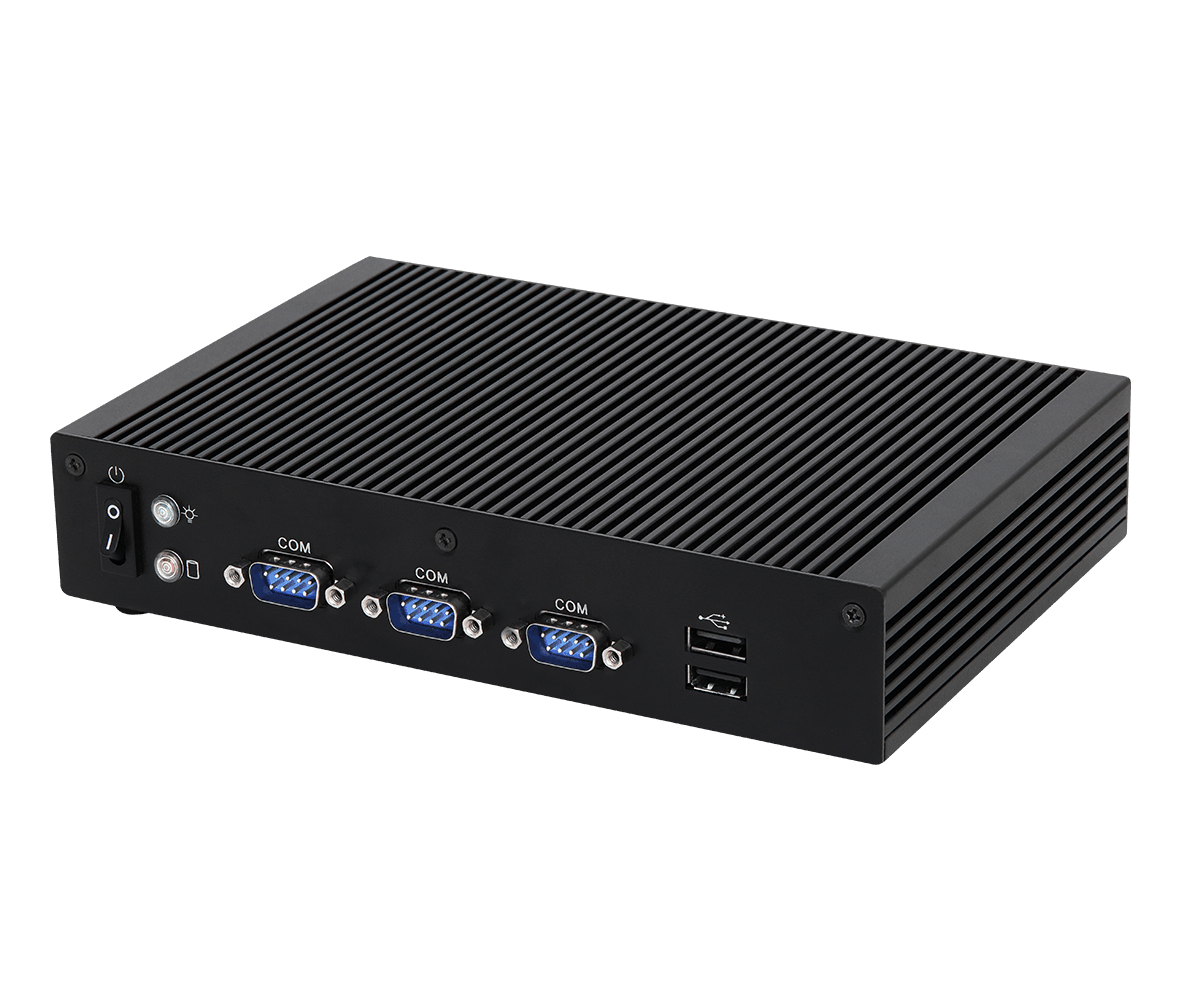

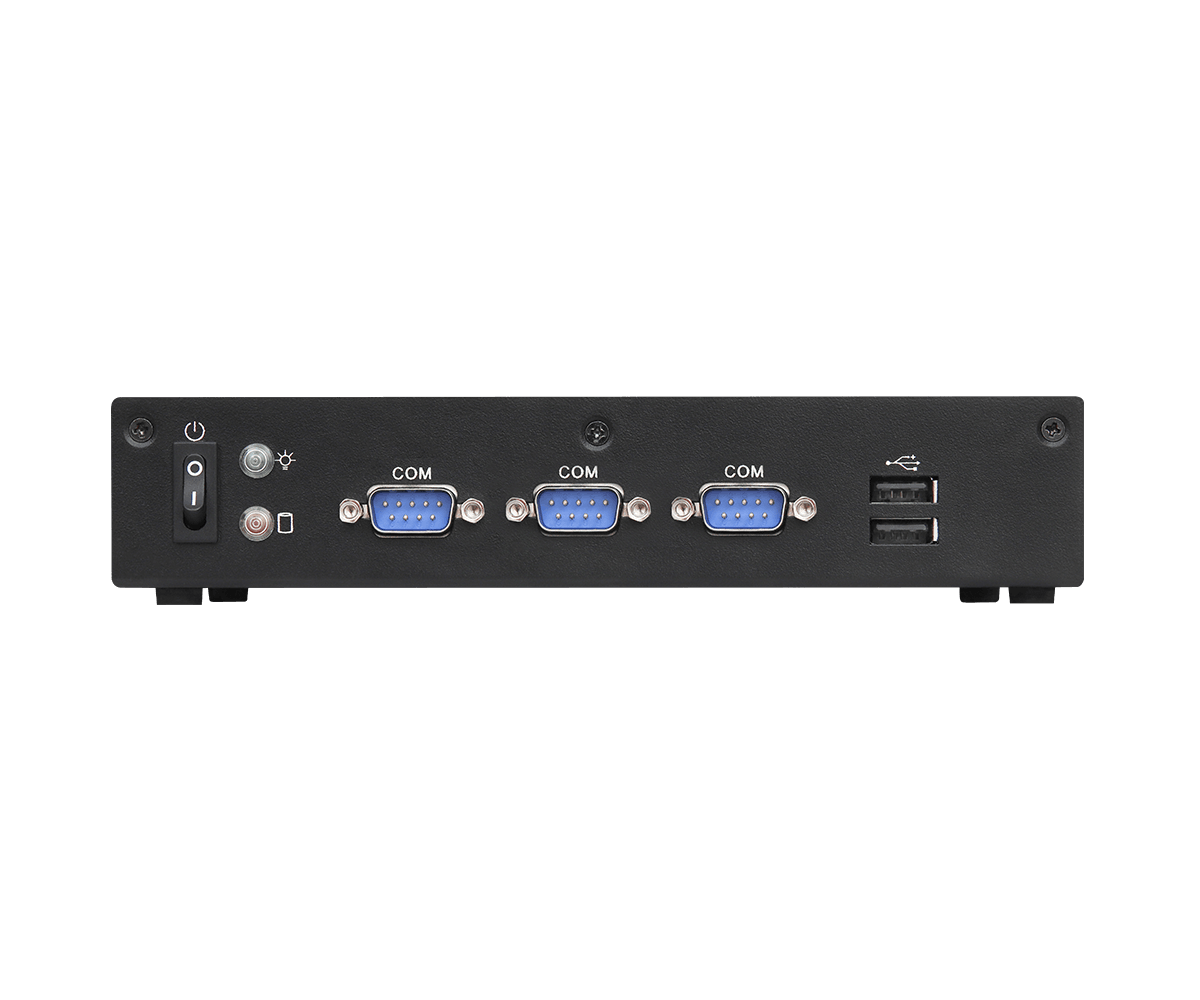

Front I/O
| USB |
2 x USB 2.0 |
| COM |
3 x COM (RS-232) |

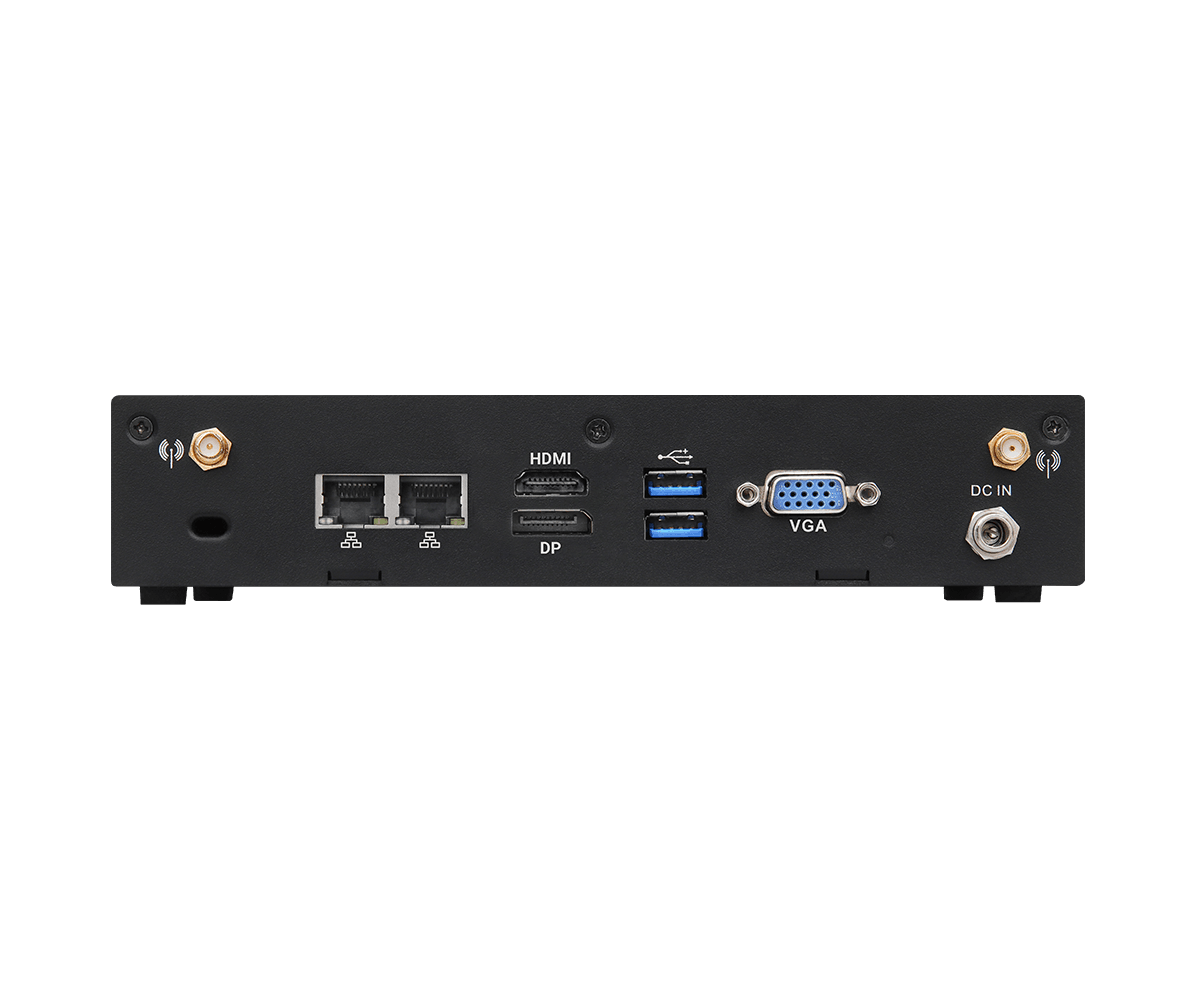

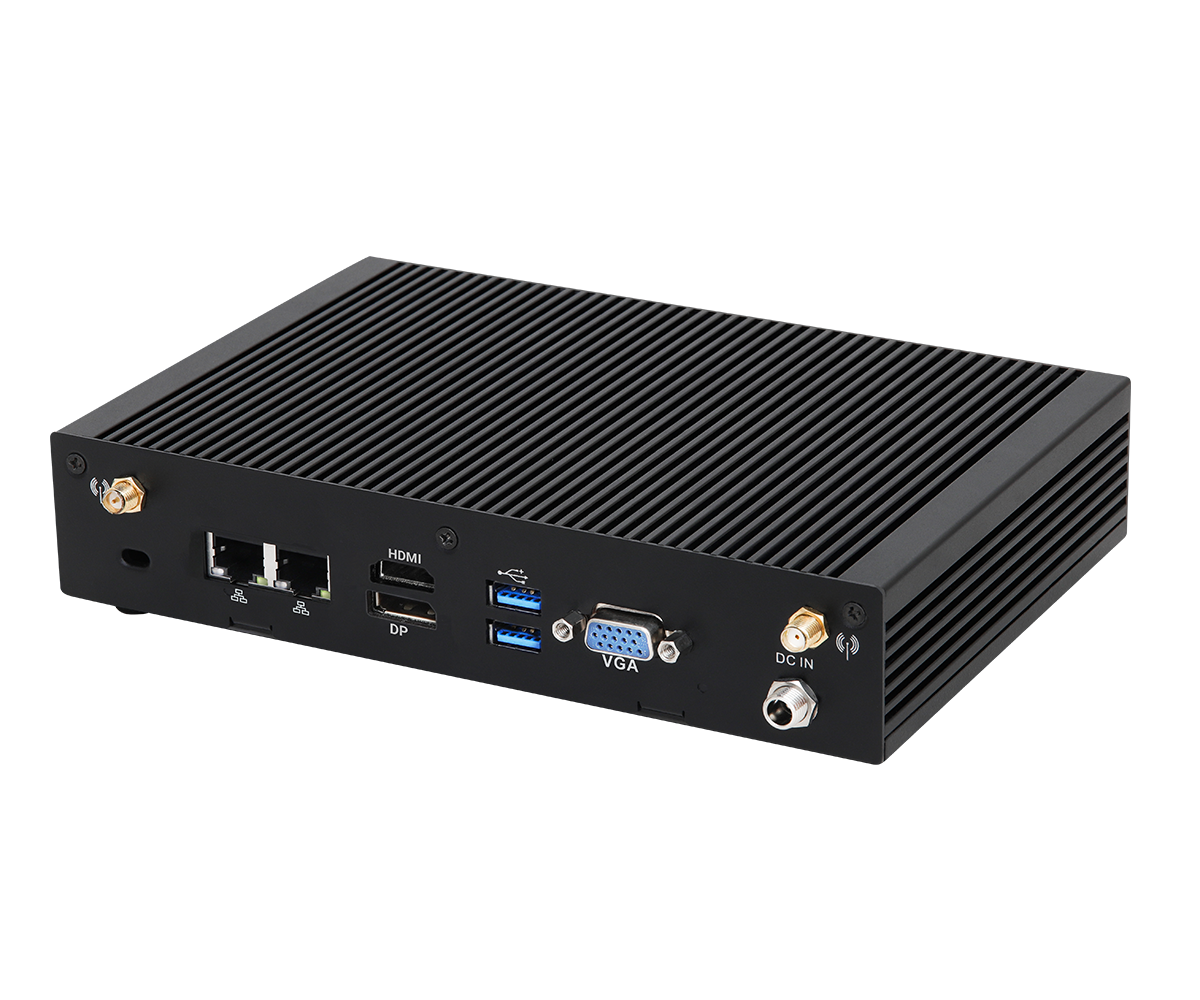

Rear I/O
| HDMI |
1 x HDMI 2.0b |
| DisplayPort |
1 x DP 1.4a |
| VGA |
1 |
| Ethernet |
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen2 |
Storage
| M.2 |
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 or SATA3 for SSD |
| SATA |
1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
9~36V DC-In |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
-20ºC ~ 50ºC (With extended temp. peripherals) |
| Storage Temp |
-40° C – 85° C |
| Operating Humidity |
10% ~ 90% |
| Storage Humidity |
10% ~ 90% |
Mechanical
| Construction |
Aluminum housing |
| Mounting |
VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) |
200 x 134.5 x 39mm (7.87" x 5.3" x 1.54") |
| Weight |
Net Weight:1.3kg |
Others
| OS Support |
Windows 10/11 |
| Certifications |
CE, FCC |
| Packing List |
1 x 19V/65W Power Adapter
1 x Wall mount kit |
| TPM |
TPM 2.0 onboard IC |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
