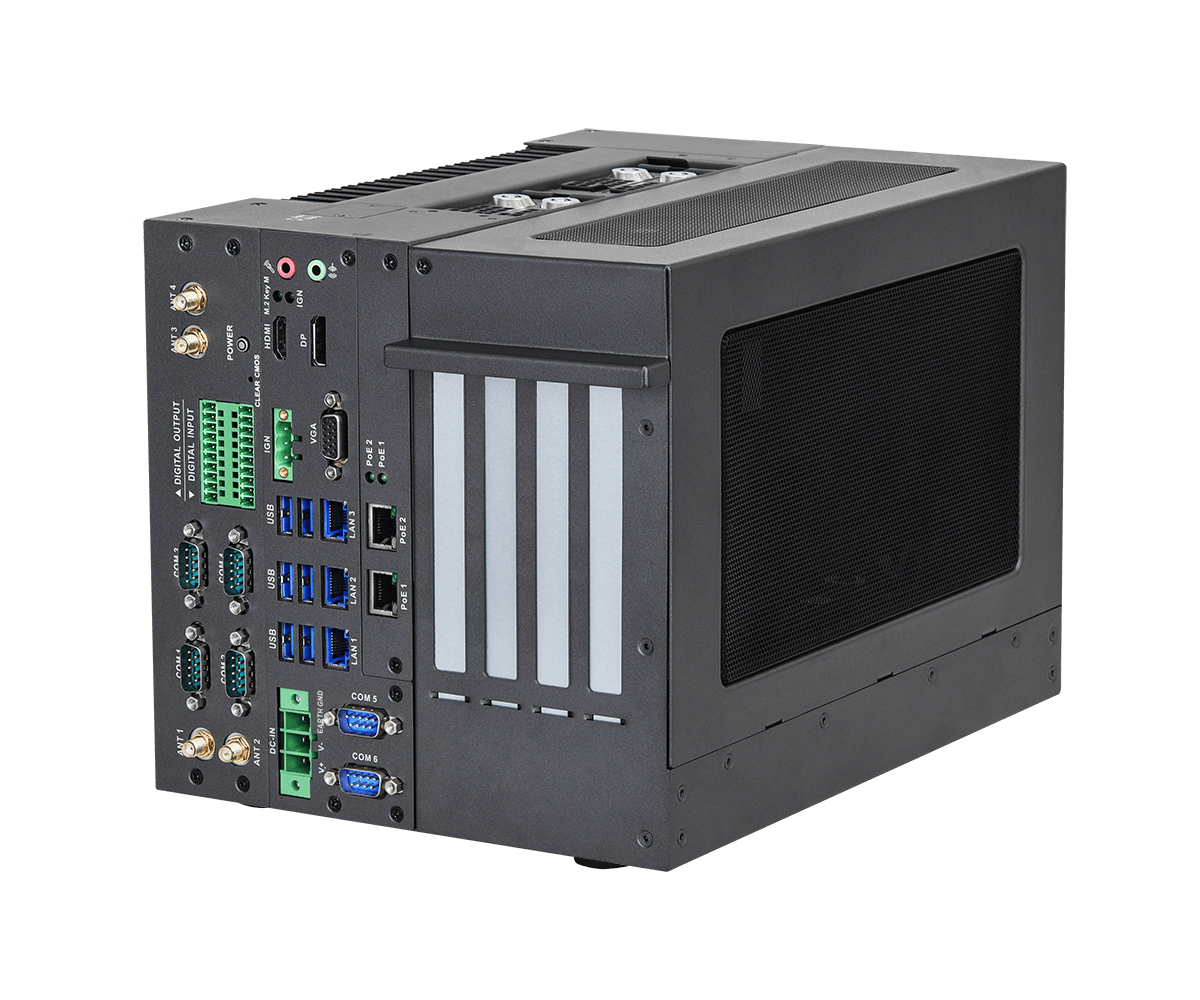

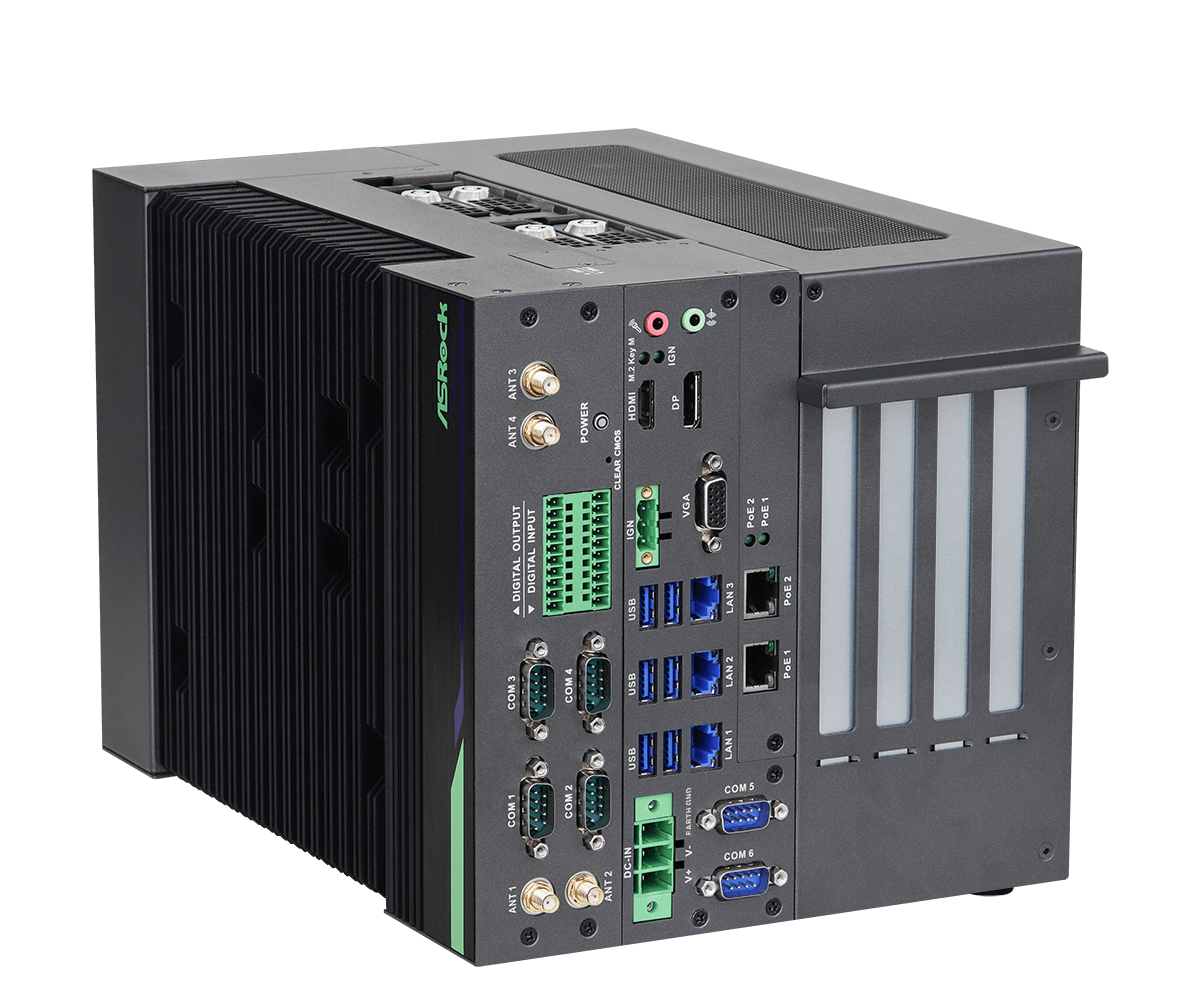

iEPF-9010S-EY4 Intelligent Edge Platform
- Intel® 12th Gen Core™ Processors with R680E Chipset
- 4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
- 1 x PCIe x16 (PCIe Gen4) or 2 x PCIe x8 (PCIe Gen4), 2 x PCIe x 4 (PCIe Gen4)
- 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
- 6 x USB 3.2 Gen2x1, 6 x COM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
- 5 x Intel 2.5G LAN (2 support PoE, LAN 1 supports vPro)
- 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
- Support Wireless Time-Sensitive Networking (WTSN)
- Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275mm x 138 mm x 60 mm (D x H x W) max. and up to 300W graphic card
- Supported NVIDIA GPU: RTX 4000 Ada, RTX 2000 Ada, RTX A2000, A2

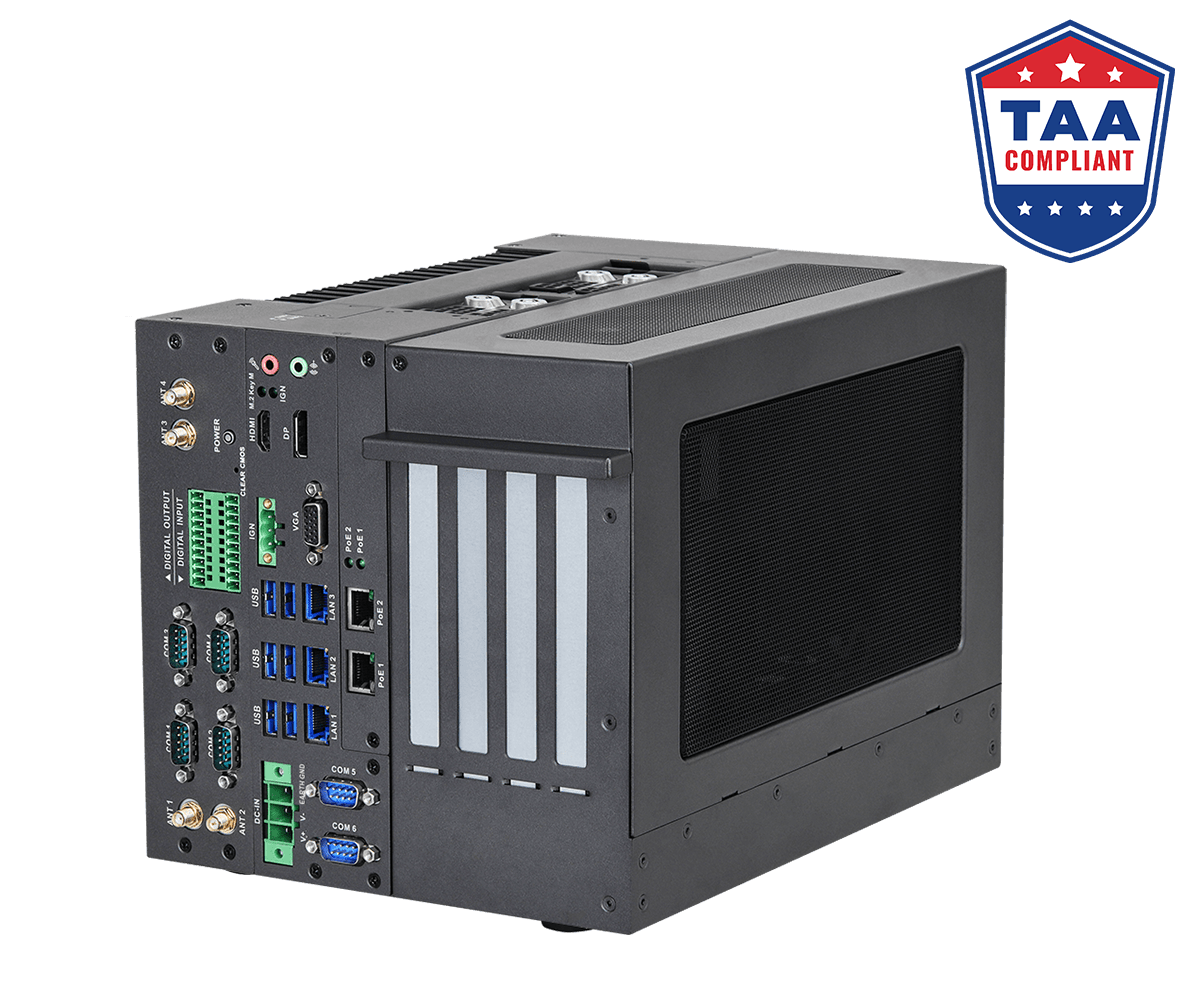

- TAA Compliant
Overview
-9010/P1.jpg)

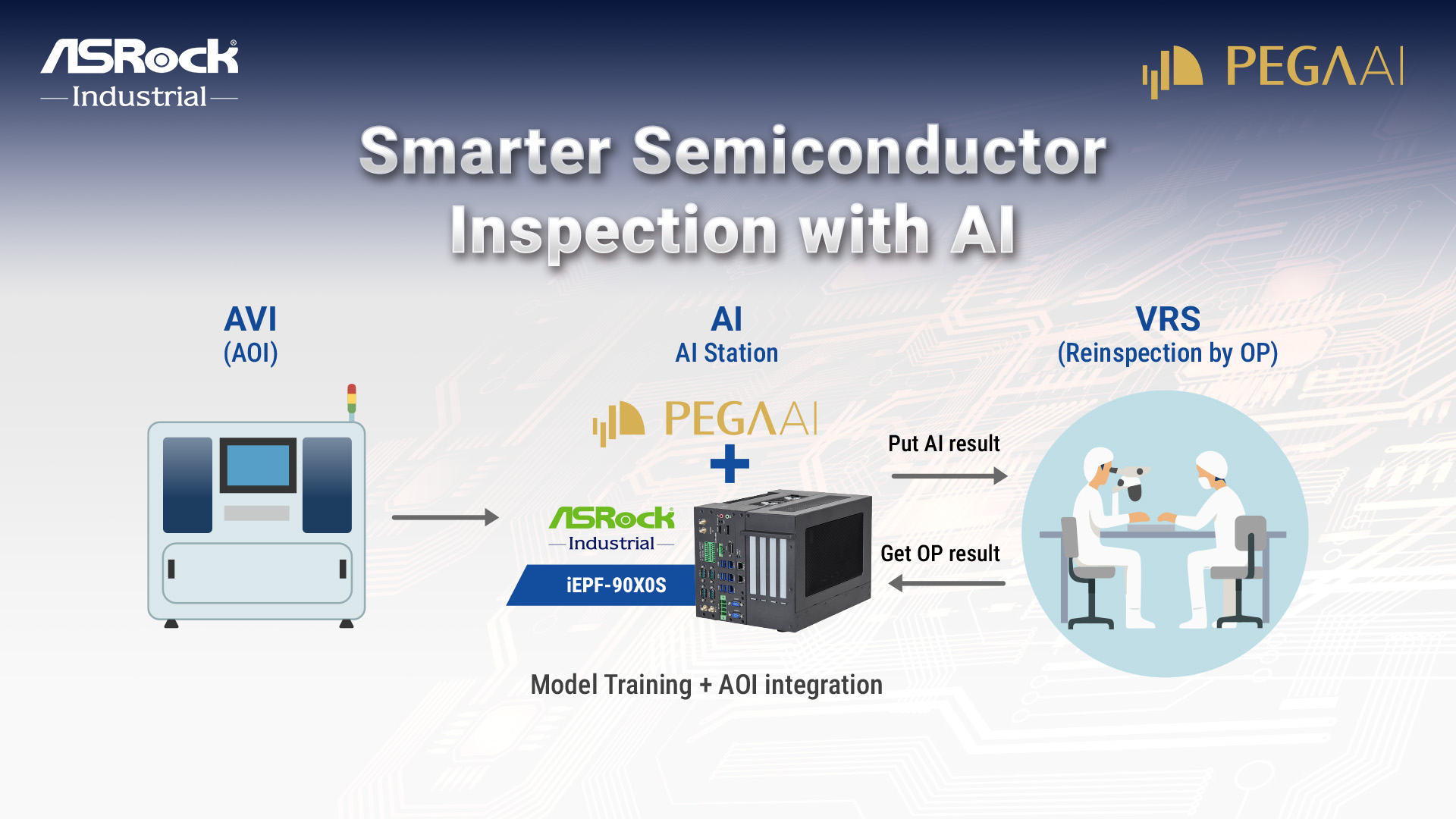

-9010/P2.jpg)
-9010/P3.jpg)

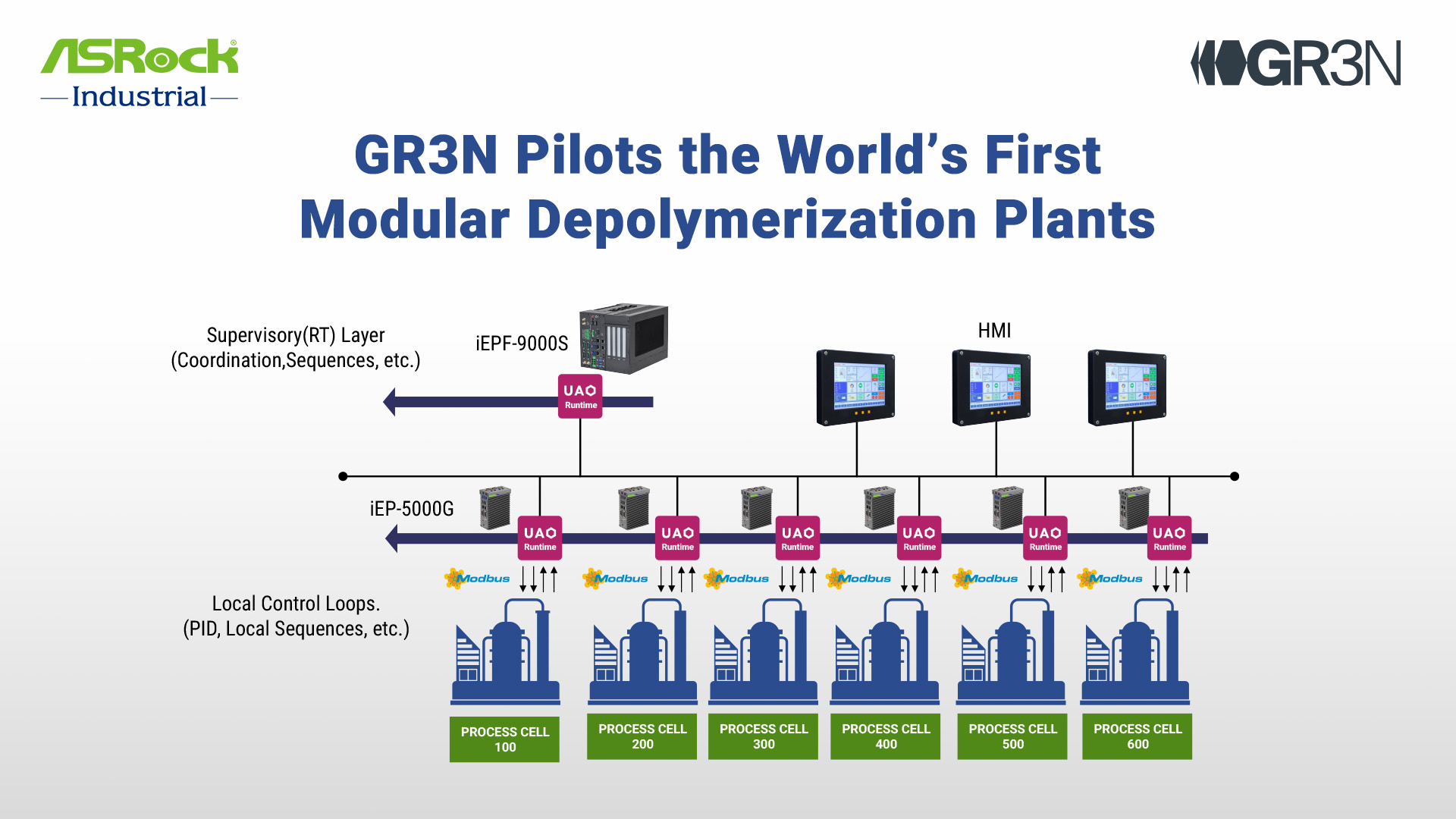

-9010/GR3N.JPG)
-9010/Edge%20AIoT%20Developer%20Kit%20KV%20960x960.jpg)
-9010/case%20study.jpg)
-9010/Insight.tech%20Article.jpg)
-9010/Insight.tech%20Podcast.jpg)
Specification
Processor System
| CPU | Intel® 12th Gen Core™, Pentium or Celeron Processors |
|---|---|
| Chipset | Intel® R680E |
| Socket | LGA 1700 |
Memory
| Technology | Dual Channel DDR4 2933MHz (ECC memory supported by R680E + Selected CPU) |
|---|---|
| Capacity | 128 GB (32 GB per DIMM) |
| Socket | 4 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
Expansion Slot
| PCIe | 1 x PCIe Gen4 x16 (single x16 or dual x8), PCIe x16 slot with default power cable can support up to 180W graphic card (275mm x 113mm x 60 mm (D x H x W, if remove the card holder, it can be limited on 275mm x 138mm x 60 mm) Graphic card can be up to 300W with optional VGA module 1 x PCIe Gen4 x8 (shared with dual x8) 2 x PCIe Gen4 x4 |
|---|---|
| mini-PCIe | 2 x Full/Half size with PCIe Gen3 x1 and USB 2.0 |
| RF& Antenna | 8 x SMA connector hole reserved |
| M.2 | 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB 2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 /USB 3.2 Gen1x1 for 4G / 5G |
| SIM Socket | 2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B) |
Audio
| Interface | Realtek ALC897, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | 5 x Intel 2.5G LAN (2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port), (LAN 1 supports vPro) |
|---|---|
| Connector | 5 x RJ45 |

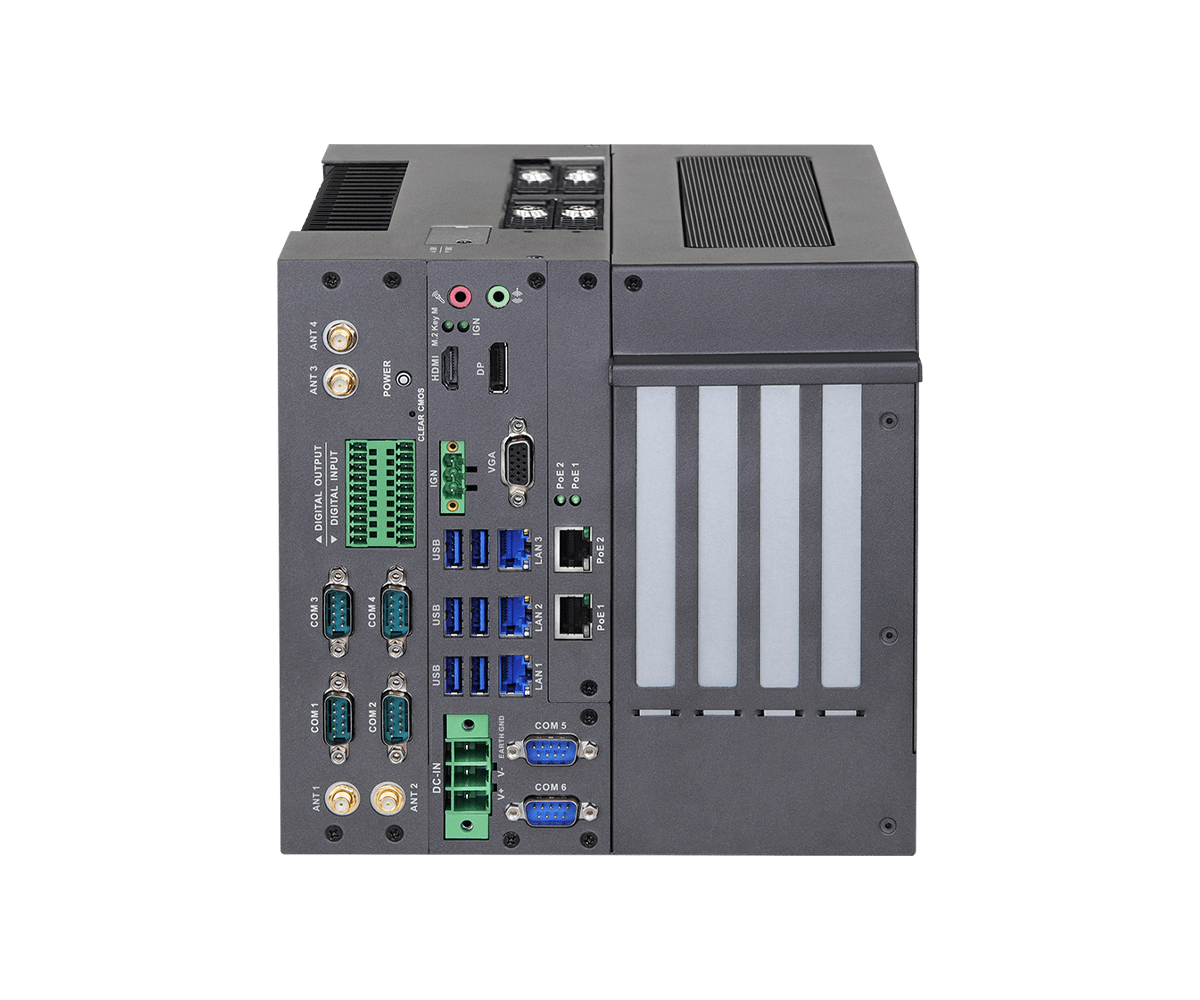

Front I/O
| DisplayPort | 1 |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| USB | 6 x USB 3.2 Gen2x1, 1 x USB 2.0 internal connector w/ lock function |
| Audio | 1 x Mic-in, 1 x Line-out |
| COM | 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection, COM6) 2 x RS232 (COM3, COM4) |
| Ethernet | 5 x 2.5G LAN |
| DIO | 8DIs/8DOs |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with Gen4/Gen3 x4 for NVMe SSD |
|---|---|
| SATA | 4 x SATA3 (6Gb/s), support RAID 0/1/5/10 Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order) |
| CFast | 1 x Type II socket (Shared with SATA3) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition |
|---|
Environment
| Operating Temp | 35W CPU: -40°C~75°C ( -40°F~167°F) 46W~65W CPU: -40°C~55°C ( -40°F~131°F) (with FAN inside, without Add-on Card) (w/ air flow 0.5~0.8 m/s) |
|---|---|
| Storage Temp | -40°C~85°C ( -40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Shock | Operating: 50 G, half sine 11ms duratio with SSD (More stringent than MIL-STD-810H) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H) |
| ESD | Contact +/-4kV, Air +/-8kV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | LVD |
Mechanical
| Construction | Aluminum heatsink + Metal chassis |
|---|---|
| Mounting | Desk Mount |
| Dimensions | 209.8mm (W) x 290.8mm (D) x 207.7mm (H) (8.26" x 11.45" x 7.94") |
| Weight | 10kg |
Others
| OS Support | Windows 10 & Linux |
|---|---|
| SW Support | ACRN (https://projectacrn.org/) |
| TPM | TPM 2.0 |
| Real-Time Enablement | TSN, TCC support under YOCTO |
| Optional Items | If the system installs the 300W VGA-PWR Board, the VGA Power Output: VGA Loading <200W (with DC-IN +12V~+36V); VGA TDP<200W VGA Loading <350W (Peak) (with DC-IN +24V~+36V); VGA TDP<285W |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
