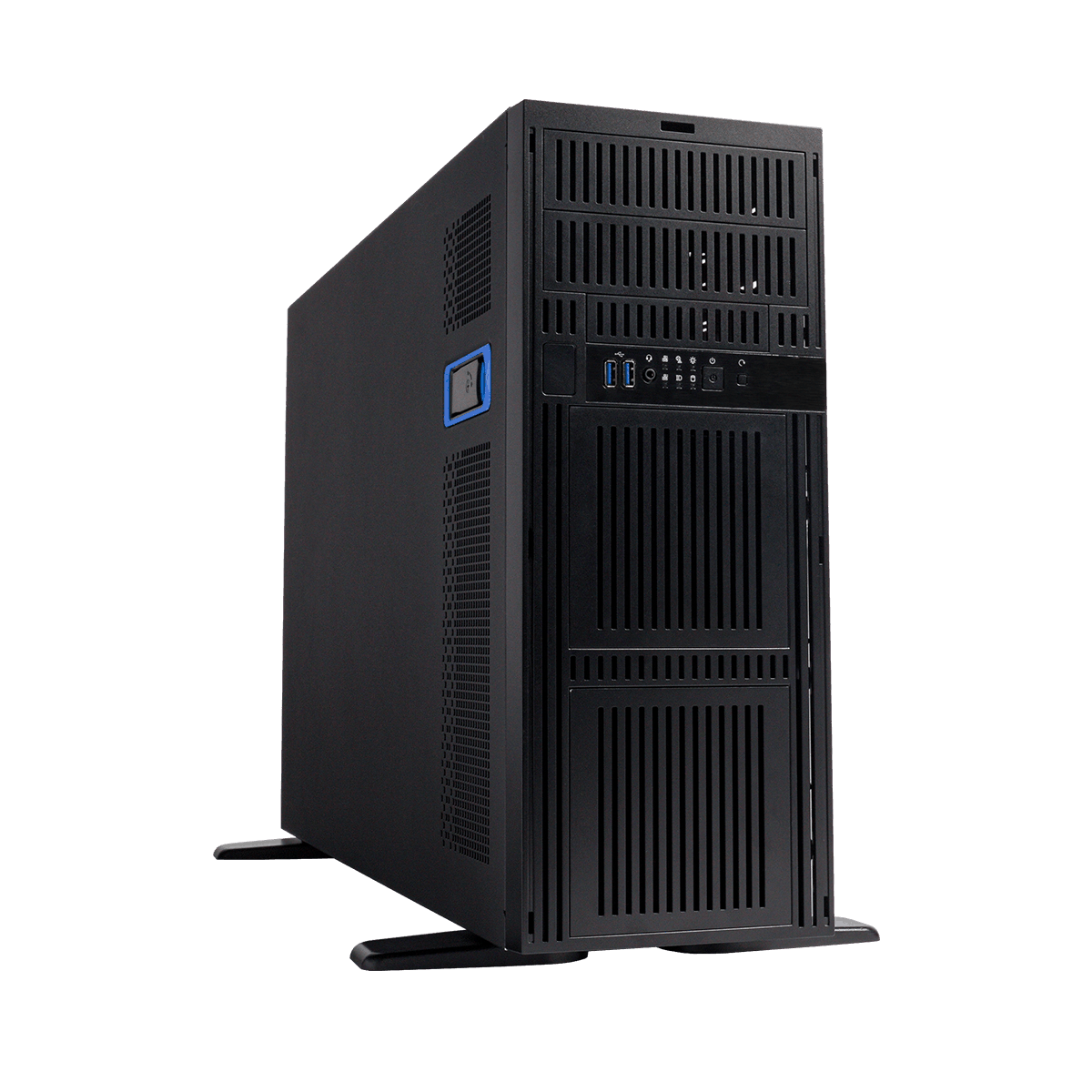

iEPF-11000S Series Expandable Edge AIoT Platform
- Supported NVIDIA GPU (1~4pcs): RTX 6000 Ada, RTX 5000 Ada, RTX A4500 Ada,
- RTX 4000 Ada, RTX A4000 SFF Ada, RTX 2000 Ada
- Supported Intel GPU (1~4pcs): Intel Arc Pro B60, Intel Arc Pro B50; Intel GPU
- (1~3pcs) Arc A770, Arc B580
- Intel® Xeon® 600 Processors with W890 chipset
- 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 5200 MHz (2DPC)/6400 MHz (1DPC), up to 2TB
- 6 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 4 x USB 3.2 Gen2, 6 x USB 3.2 Gen1,
- 3 x USB 2.0, 2 x M.2 Key M, 2 x COM, 8 x SATA3, 1 x VGA
- 2 x Intel 1 Gigabit LAN, 2 x Intel 10 Gigabit LAN option
- TPM 2.0 onboard IC
- Support Intel® vPro, VMD RAID 0/1/5/10
- ATX Power Supply 1600W at 115-240V
- Eight PCIe slots chassis to support up to 4pcs dual width graphic cards or 2pcs
- triple width graphic cards
Overview
-11000S/P1.jpg)
-11000S/P2.jpg)
Specification
Processor System
| CPU | Intel® Xeon® 600 Processors |
|---|---|
| Chipset | Intel® W890 |
| Socket | LGA4710 |
| BIOS | AMI SPI 256 Mbit |
Discrete Graphic Card Option
| iEPF-11000S Series NVIDIA Graphic Card Option | RTX 6000 Ada 48GB GDDR6, 300W, 1~4pcs RTX 5000 Ada 32GB GDDR6, 250W, 1~4pcs RTX 4500 Ada 24GB GDDR6, 210W, 1~4pcs RTX 4000 Ada 20GB GDDR6, 130W, 1~4pcs RTX 4000 SFF Ada 20GB GDDR6, 70W, 1~4pcs RTX 2000 Ada 16GB GDDR6, 70W, 1~4pcs |
|---|---|
| iEPF-11000S Series Intel Graphic Card Option | Arc Pro B60, 24GB GDDR6, 200W, 1~4pcs Arc Pro B50, 16GB GDDR6, 70W, 1~4pcs Arc A770, 16GB GDDR6, 225W, 1~3pcs Arc B580, 12GB GDDR6, 190W, 1~3pcs |
MB Expansion Slot
| PCIe | Chassis supports Eight PCIe slots. PCIE7: PCIe Gen5 x16 (Next to CPU) PCIE6: PCIe Gen5 x16 PCIE5: PCIe Gen5 x16 (supported by CPU Expert SKU) PCIE4: PCIe Gen5 x16 PCIE3: PCIe Gen5 x16 (supported by CPU Expert SKU) PCIE2: PCIe Gen5 x8 PCIE1: PCIe Gen5 x16 |
|---|
MB Rear I/O
| Ethernet | LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro (Optional LAN3 and LAN4) LAN3: Intel® E610-XAT2 with 10/100/1000/2500/5000/10000 Mbps LAN4: Intel® E610-XAT2 with 10/100/1000/2500/5000/10000 Mbps |
|---|---|
| USB | 4 x USB 3.2 Gen2 (chassis rear side) 2 x USB 3.2 Gen1 (chassis front side) |
| Audio | 3 (Line-In/Line-Out/Mic-In) |
| COM | COM3 (RS-232/422/485) |
| VGA | 1 x VGA from Silicon Motion SM750 Max resolution up to 1920 x 1200@60Hz |
MB Internal Connector
| USB | 2 x USB 3.2 Gen1 (vertical con) 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 3 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM4 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
Memory
| Technology | Quad Channel ECC DDR5 5200 MHz (2DPC)/6400 MHz (1DPC) |
|---|---|
| Capacity | 2TB |
| Socket | 8 x 288-pin RDIMM/RDIMM-3DS |
Audio
| Interface | 3 (Line-In/Line-Out/Mic-In)(rear side) |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro (Optional LAN3 and LAN4) LAN3: Intel® E610-XAT2 with 10/100/1000/2500/5000/10000 Mbps LAN4: Intel® E610-XAT2 with 10/100/1000/2500/5000/10000 Mbps |
|---|
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280/3052/25110) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD |
|---|---|
| SATA | Default support 1*3.5" internal SATA HDD bay, or up to optional 8-Bay 2.5" SATA hot-swap module in two 5.25" area 8 x SATA3 |
| RAID | Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key M SATA interface: SATA port |
Power Requirements
| MB Input Power | 1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
|---|---|
| Power Supply Unit | Rated Output Power 1600W at 115-240V Rated Output Power 1300W at 100-240V |
Mechanical
| Dimensions | 602.6 (D) x 175.0 (W) x 438.0 (H) mm 4U tower and rackable, supports rack kit option: ear handle, slide rail, and CMA |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
