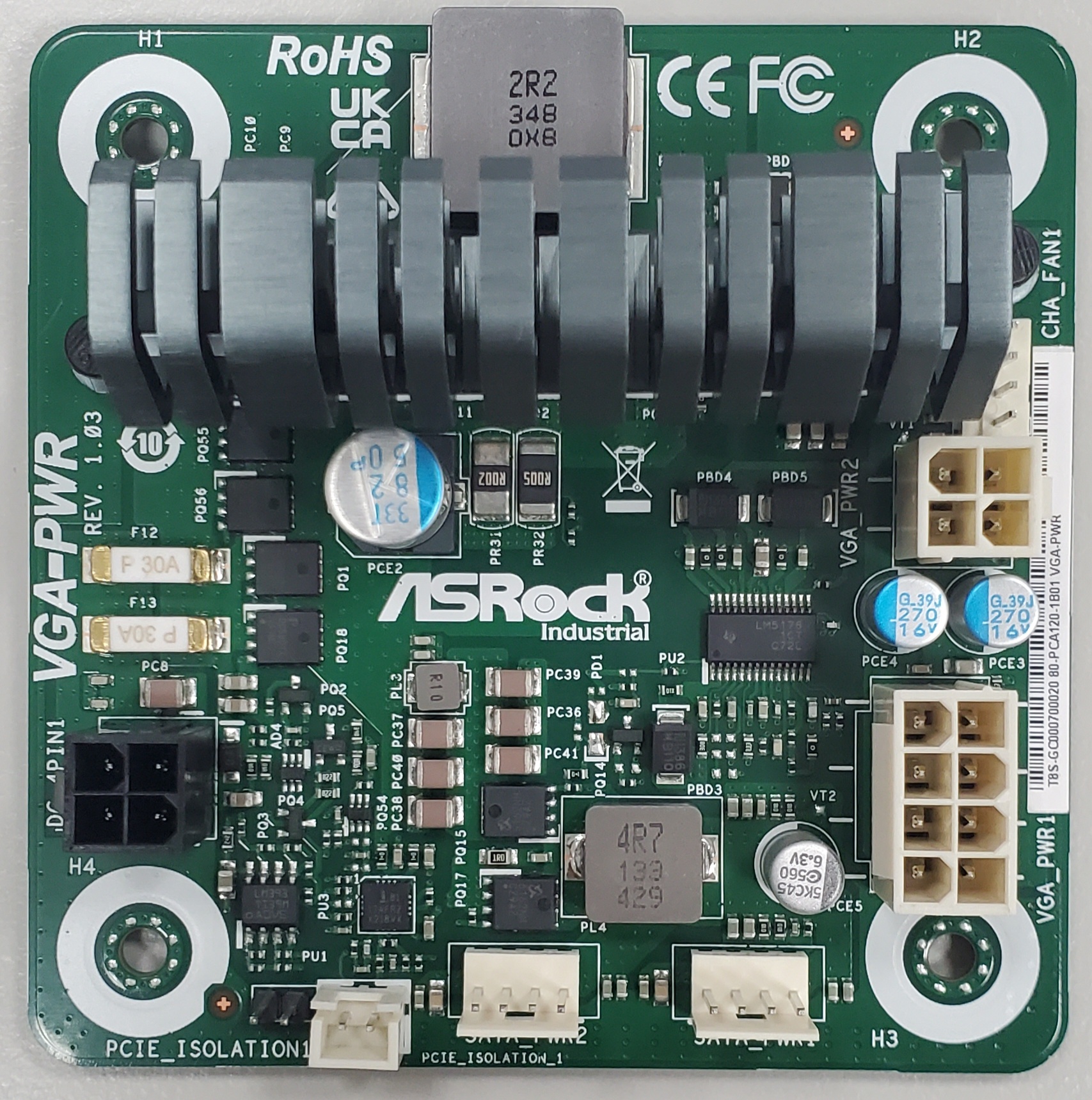

VGA-PWR
- [ASRock Industrial Exclusive]
- Supports the following Motherboard:
- IMB-1239-WV, IMB-1240-WV, IMB-X1240-WV
- IMB-1244-WV, IMB-X1244-WV
- IMB-1245-WV Series: IMB-1245P-WV, IMB-1245M-WV
- IMB-A8000 Series: IMB-A8000P, IMB-A8000S, IMB-A8000M, IMB-A8000V
Specification
Specifications
| Form Factor | Customized |
|---|---|
| Function | 4-pin DC-IN Power to output power boost up to 350W (Peak) |
| Dimensions (W x L x H/mm) | 90 x 90 x 13 |
| Controller / Major IC | TI LM5176PWPR Intersil ISL8117AFRZ-T |
| Input Interface/Power | 1 x 4-pin DC-IN Power connector (+12V~36V) 1 x PS_ON# Header |
| Output connector | 1 x 8-pin VGA Power connector, support 12V 1 x 4-pin VGA Power connector, support 12V 1 x 4-pin FAN connector, support 12V 2 x 4-pin SATA Power connector, support 5V/12V |
| VGA Power Output | VGA Loading <200W (with DC-IN +12V~+36V); VGA TDP<200W VGA Loading <350W (Peak) (with DC-IN +24V~+36V); VGA TDP<285W |
| Operating Temperature | -20 ºC ~ 70 ºC |
| Storage Temperature | -40 ºC ~ 85 ºC |
| Package | 1 x 8-pin to Graphics card cable (8p to 6p*2/2p*2) 1 x PS_ON# cable (2p to 2p) 1 x DC-IN cable (4P to 4P) 1 x DC-Out cable (4P to 4P) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
