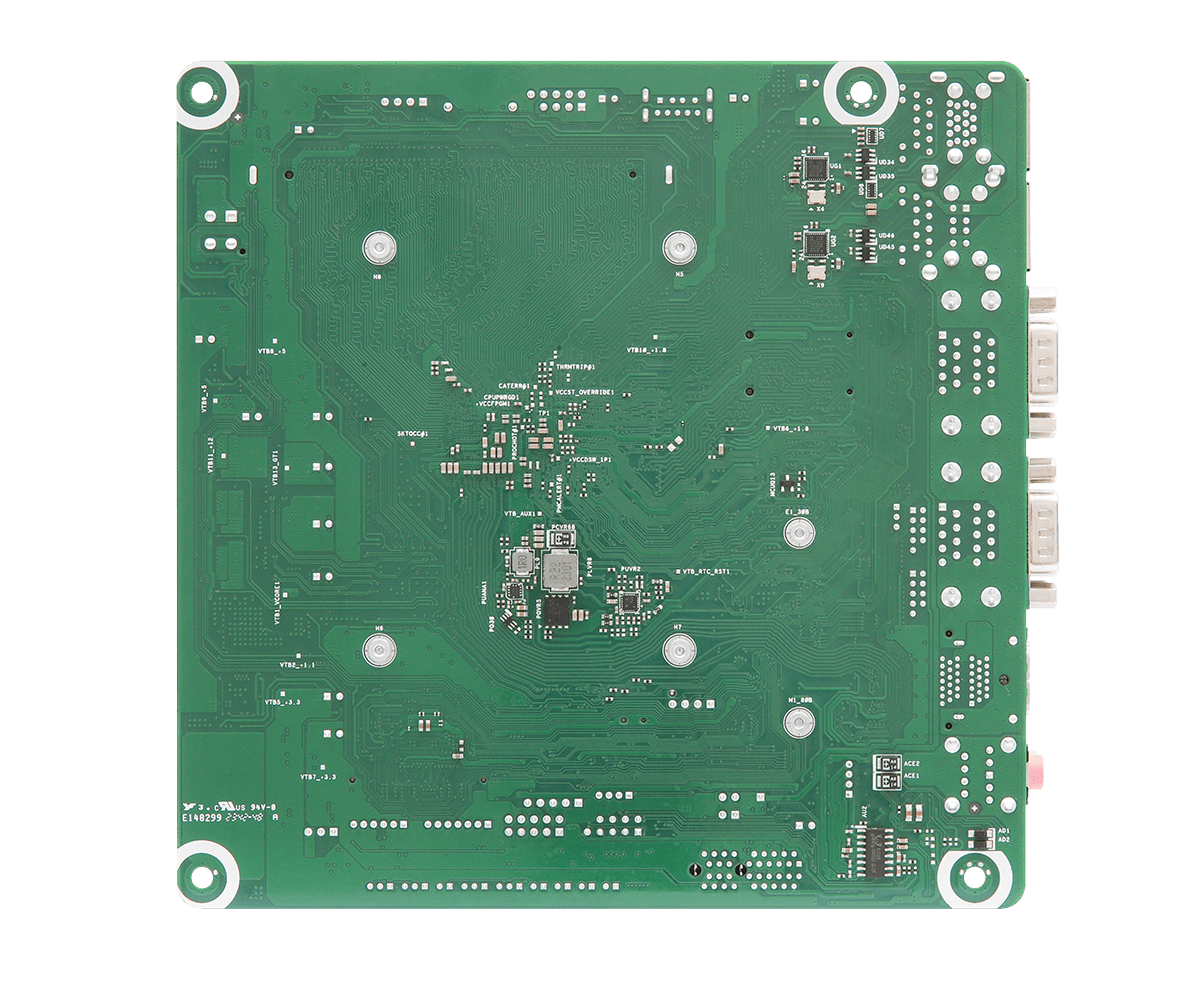

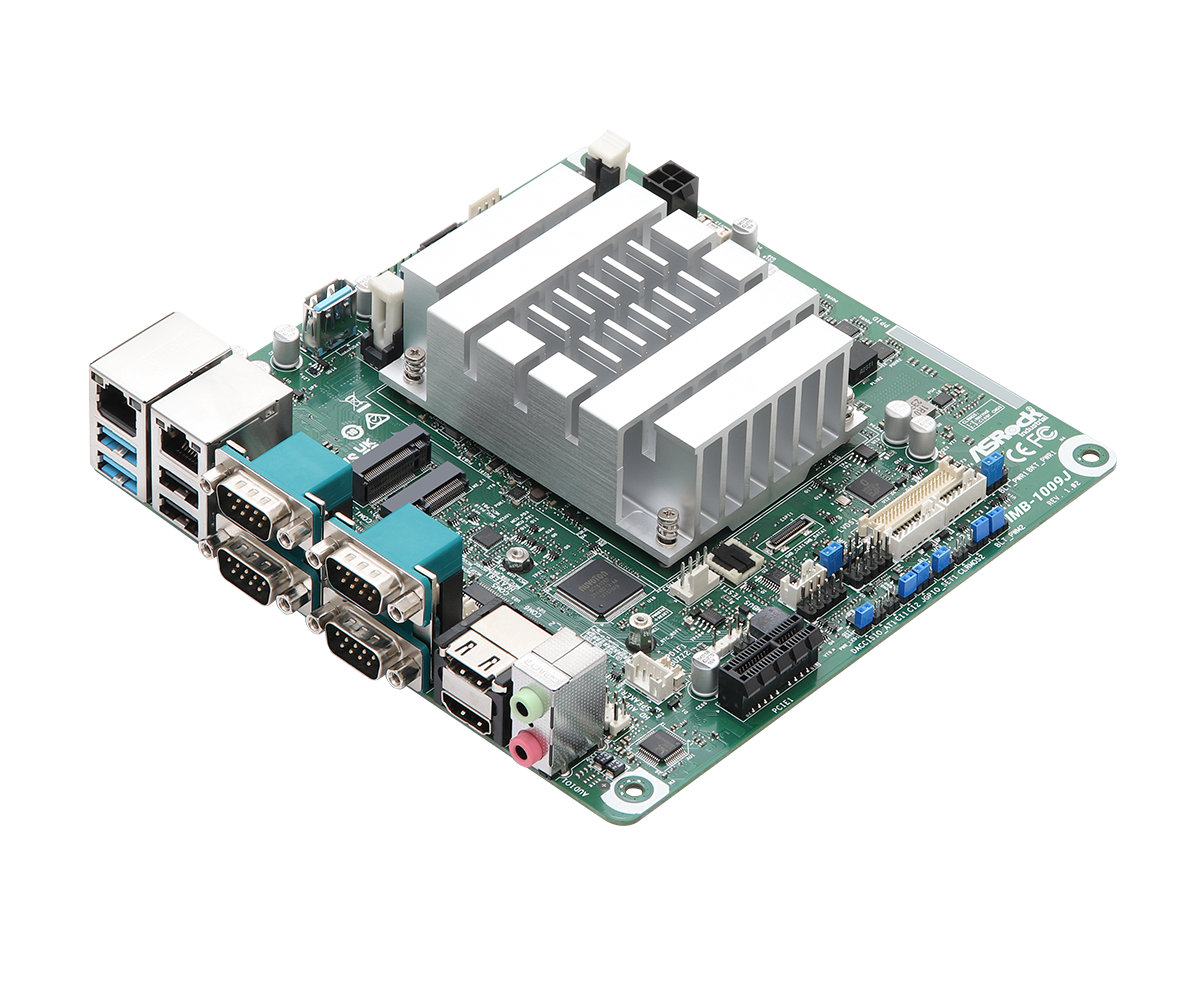

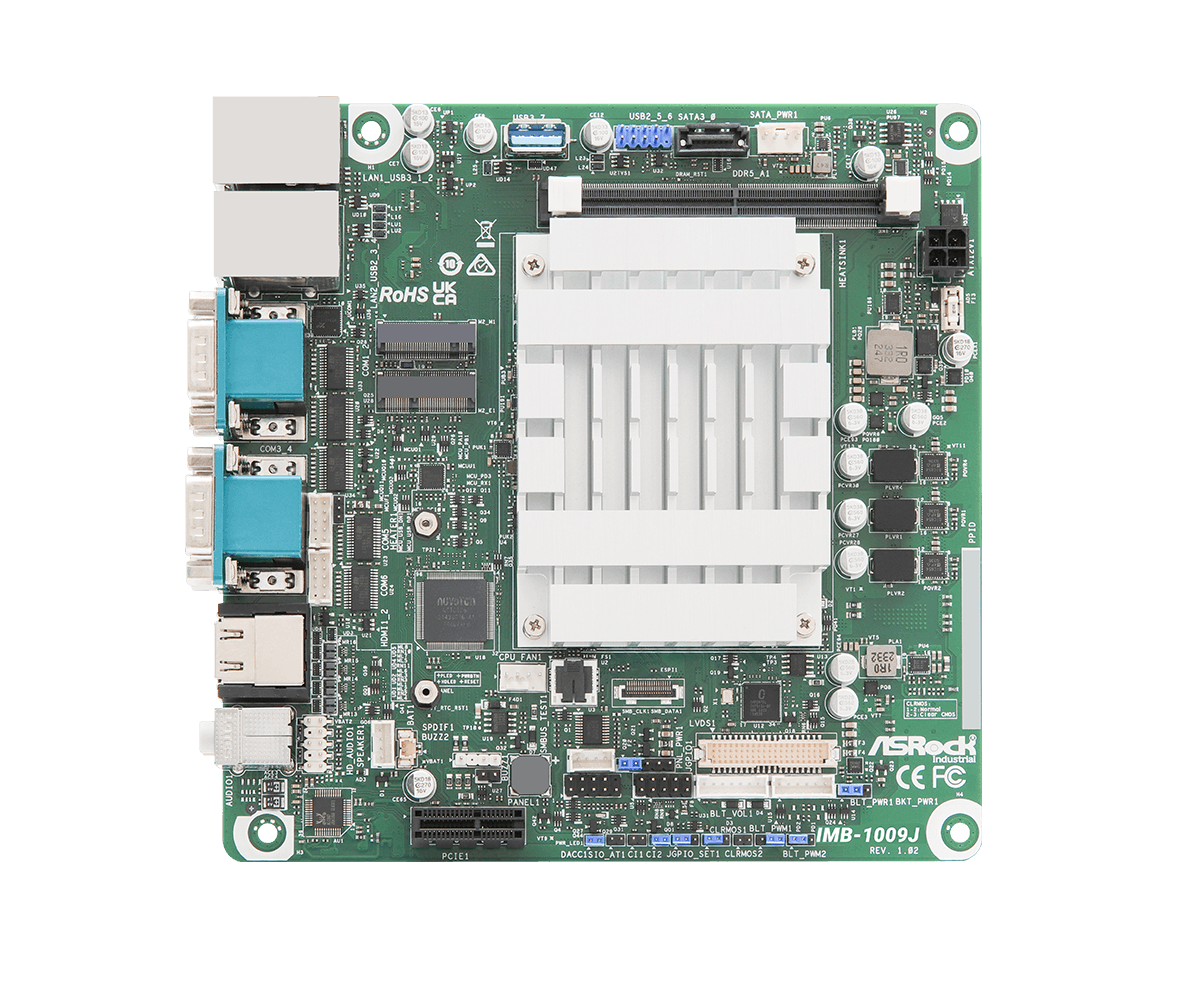

IMB-1009J Mini-ITX Motherboard
- Intel® Twin Lake Processors N150
- 1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB
- 1 x PCIe x1 (Gen3), 2 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 1 x SATA3
- 2 x Realtek Gigabit LAN
- Support Triple display, 2 x HDMI 2.0b, 1 x LVDS or eDP
- 12V DC-In
Specification
Processor System
| CPU | Intel® Twin Lake Processors IMB-1009J (N150, QC, Max Speed Up to 3.6GHz, 6W) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.0 cm) |
|---|
Memory
| Technology | Single Channel DDR5 4800 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display |
Expansion Slot
| PCIe | 1 x PCIe x1 (Gen3) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio.Mic-in, Line-out |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

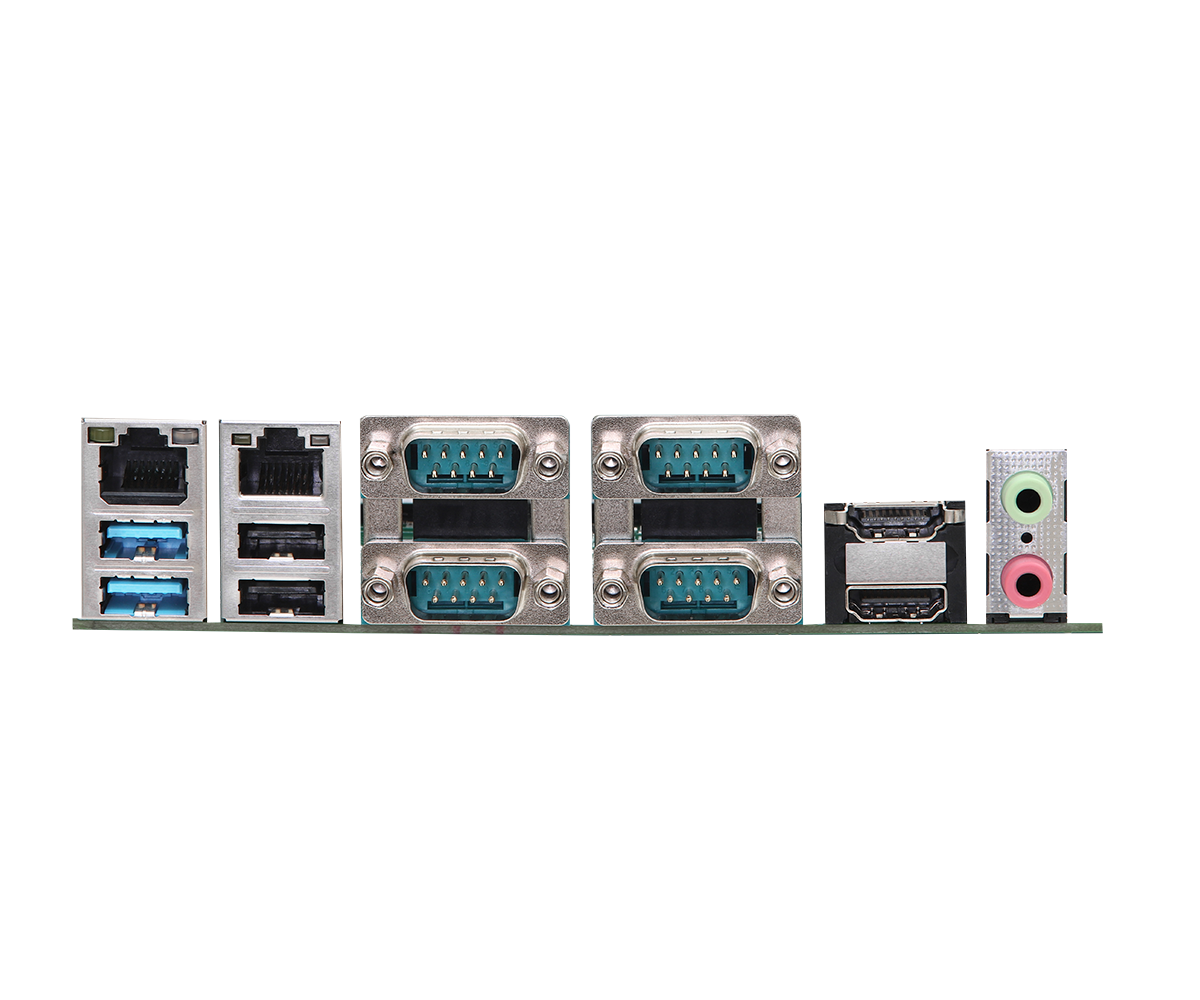

Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 |
| Audio | 2 (Mic-In, Line-Out) |
| COM | COM1 (RS-232/422/485) COM2, COM3, COM4 (RS-232) |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| COM | COM5, COM6 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-In with 4-pin plug PWR cable |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
